超盛公司高端印制电路板技术Chaosheng's high-end PCB technology

Super large size PCB/FPC circuit board production capacity table1.

浏览数:3

Super large size PCB/FPC circuit board production capacity table1. Advantages of special large-scale equipment

1.1, CNC drilling machine (2600*1500mm

1.2. Automatic screen printing machine: 2600*1200Mm

1.3. Overall width and size of the polishing machine: 2600*1200Mm

1.4. Overall width of electroplating tank equipment: 2600*1350Mm

1.5. The total width of etching equipment: 1250Mm

1.6. Effective overall width of pressing equipment: 2180*1200Mm

1.7. Overall width of laser inspection equipment: 2100mm*1150Mm

1.8. Overall width of AOI equipment: 2600*1200Mm

1.9. Overall width and size of testing machine equipment: 2600*1200Mm

1.10, v-cut equipment width dimension "1300mm

1.11. Overall width of osp equipment: 1250mm

1.12. Equipment size of immersion gold production line: 1650*1150mm

1.13. Equipment size of electro-nickel-gold production line: 1350*1230Mm

1.14. Raw packaging equipment: 1600*1150Mm

1.15. Soldering paste packaging and printing equipment size: 2500*1200Mm

1.16 、SMT equipment width: 1700*1170mm;

1.17. Equipment size of reflow oven: 1700*1150 meters

1.18. Roll-to-roll drilling, roll-to-roll punching, roll-to-roll filming, roll-to-roll polishing, roll-to-roll subsidy strengthening machine, roll-to-roll electroplating, roll-to-roll printer, roll-to-roll etching line, roll-to-roll Roll-to-roll AO1, roll-to-roll automatic punching, roll-to-roll automatic SMT (finished roll-to-roll to 100 meters * specific size width 1100mm, normal width 250mm, 500mm)

1.19. Roll-to-roll drilling and electroplating equipment 100 meters * 1.10 meters wide;

1.20, FR-4 material size 2500*1100mm, thickness: 0.20mm to 1.0mm, copper thickness 18um to 35um

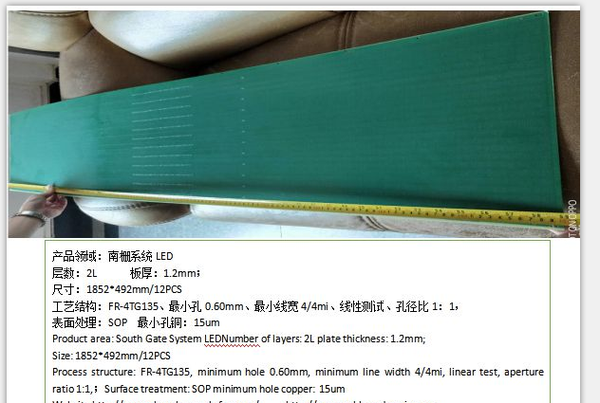

2. Chaosheng produces large-size double-sided panels

2.1: Drilling machine size: 2400*1100Mm, can drill 2350*1200M meters

2.2: Automatic screen printing machine: 2400*1300mm

2.3: The optical machine equipment is limited to double-layer size: 2600*1250mm

2.4: Electroplating cylinder equipment is limited to double-layer size: 2300*1200mm

2.5: The total width of the etching processing line: 1300mm

2.6: Two layers of lamination equipment Size: 2180*1.20m

2.8: Solder mask unilateral interval 0.12mm

2.9: Minimum hole 0.50mm

2.10: Overall width of CNC equipment: 2600*1300mm

2.11: Overall width of raw testing machine equipment: 2500*1250Mm

2.12: V-CUT equipment width dimension "3000*1300mm

2.13: Overall width of OSP equipment: 1250mm

2:14: Immersion gold production line equipment size: 1500*1200mm

2.15: Electro-nickel-gold production line equipment size: 1400*1200mm

2.16: Vacuum packaging equipment: 1300*1200mm

2.17: Flux paste equipment Equipment size: 2100*1100mm

2.18: SMT device width: 1600*1150Mm

2.19: Reflow oven equipment size: 1600*1150mm

2.20: Finished plate thickness 0.12-10.0Mm±10%

2.21: Four-wire test value ±10%, size 1700*1200mm

2.22: E-SET 100% test

2.23: Laser printer 2500*1200mm

3. Chaosheng produces large size 4~80 layers of buried filler finished product size

3.1, 4-80 layer buried hole finished product size: 1350*1.15 meters

3.2, 10-10 layer buried hole finished product size: 1550*1.15 meters

3.3, 4-8 layers HDI finished product size: 1250*1150mm

3.4: The minimum line width and line spacing are more than 7/7mil

3.5: 0.15mm interval for welding mask unilateral window opening

3.6: Minimum hole 0.10mm

3.7: Finished plate thickness 0.25-10.0mm±10%
